Description

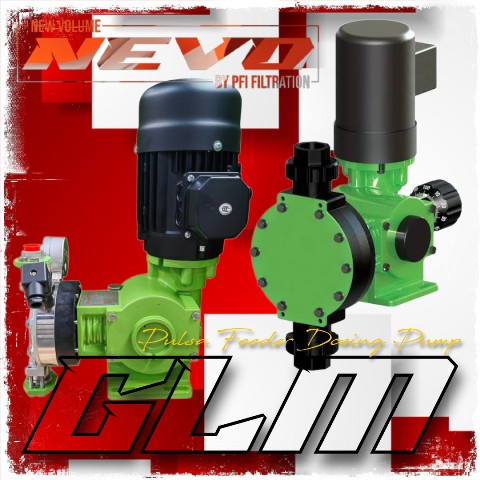

GLM DM2A3PT Dosing Pump Pulsafeeder Kapasitas 25 LPH 10 Bar

Nevo Filter adalah supplier dan distributor GLM DM2A3PT Dosing Pump Pulsafeeder Indonesia dan berbagai produk filtrasi industri yang juga menyediakan filter cartridge, liquid filter bag, dan housing filter untuk aplikasi water treatment, industri kimia, dan proses manufaktur dengan fokus pada keandalan dan efisiensi sistem.

GreenLine Series Pump

FLOW 3.2 – 824 GPH (12 – 3,120 LPH)

PRESSURE Up to 175 PSI (12 BAR)

Pulsafeeder GLM Series merupakan salah satu Mechanical Diaphragm Dosing Pump yang dirancang untuk memberikan akurasi injeksi bahan kimia dengan performa stabil pada berbagai aplikasi Water Treatment maupun proses industri. GLM Series banyak digunakan karena memiliki konstruksi yang kokoh, pengoperasian yang sederhana, biaya perawatan yang rendah, serta mampu bekerja secara kontinu untuk berbagai kebutuhan chemical dosing.

Sebagai bagian dari Pulsafeeder Dosing Pump, GLM Series menjadi salah satu seri unggulan yang banyak dipilih oleh kontraktor EPC, engineering company, OEM, maupun maintenance plant karena menawarkan kombinasi antara keandalan, kemudahan perawatan, dan efisiensi biaya operasional.

Overview GLM Pulsafeeder Dosing Pump

GreenLine Pulsa GLM series is a mechanically actuated diaphragm metering pump, designed to be reliable, robust, efficient, and compact. It features an industrial design to work in just about any application or environment. If you are looking for a high value chemical transfer or dosing metering pump with low cost of ownership, Pulsa GLM is an outstanding choice. This latest pump series from Pulsafeeder can handle a wide range of flows and process chemicals.

The GreenLine drive is has a sealed upper worm bearing extends gear and motor life, reduces noise, and maximizes pump efficiencies by ensuring full torque output.  The motor flange drain path redirects liquids away from seal and eliminates pooling / resting on seal or motor shaft connection. Non-metallic, never-seize motor coupling prevents sticking or “welding” of worm shaft to motor shaft allowing for ease of motor installation / removal.

Secure diaphragm sealing technology provides leak free service and chemical containment. A secondary O-ring seal offers worry free valve sealing and eliminates chemical spray and the retention plate ensures pressure containment (hydrostatic and creep elimination) and allows for proper head bolt torque without loosening over time.

Standard Features

• Gearbox: Compact and lightweight gearbox saves space and easy to handle. Fully sealed, non-vented gearbox design prevents ingress of contaminants. Oversized, shielded bearings for long life and reliability
• Rugged double-sided PTFE faced, long life diaphragm: GreenLine’s flat mechanically actuated diaphragm delivers reliable pumping action and long life,  maximizes chemical resistance and diaphragm lubrication. The multiple diaphragm sealing beads prevent leakage in industrial applications.
• Mounting Feet: Flat, solid mounting feet so pump will not tip over prior to installation
• Spherically uniform velocity check valves limit turbulence, provides superior solids handling and is auto-flushing. The Flow is routed evenly without risk of cavitation. The GreenLine O-ring valve seat (soft seat) for improved priming, less noise, and better solids / slurry handling (not available in 316L configurations).

Specification GLM DM2A3PT Dosing Pump Pulsafeeder

Stroke Adjustment: 0-100% stroke range in one complete revolution, resolution 1%, Auto locking stroke position, drift free – maintaining proper flow

• Suction Lift: 10 ft (3m)
• Viscosity: Up to 1,000 cps
• Turndown: 10:1
• Modular Connections: Threaded, Flanged
• Connections: Standard FNPT and ANSI Flanged Connections
• Accuracy: +/- 2% of Set Point
• Chemical Compatibility: PVDF, 316L SS, PTFE & Viton wet end options
• Wet End Materials: PVDF, 316L Stainless
• Diaphragms: Composite PTFE, solid PTFE (DM7 only). Double sided PTFE coated composite diaphragms maximize chemical resistance and diaphragm lubrication
• Check Valves: Ceramic or Stainless Steel
• Housing: Epoxy painted aluminum
• Lubrication: Oil bath for normal or explosion proof areas – lubricates all internal moving parts to extend pump life with an easy and accessible oil fill location
• Hardware: Stainless Steel for added chemical resistance
• Four Bolt Tiebar: 316L models only
• Process Temperature: From 32 – 113°F (0-45°C)
• Ambient Temperature Range: From 32-113°F (0-45°C)

Accessories

• KOP Kits
• PULSALube
• Heavy Duty Adaptor
• Pulsation Dampeners
• Y Strainers
• Pressure Relief Valves

Optional Features

• Leak Detection: Safeguard your pump and system from costly product loss and equipment damage. The leak detection double diaphragm option comes with a pressure gauge and switch to monitor the diaphragm integrity. The two diaphragms give you superior protection from a diaphragm failure.
• Variable frequency drive and motor maximizes operating range and remotely control GreenLine (Optional).

Model Pulsafeeder GLM Series yang Tersedia

NEVO Filter Indonesia menyediakan berbagai model GLM Series yang siap mendukung kebutuhan Water Treatment maupun aplikasi industri.

*Ketersediaan model dapat berubah mengikuti pergerakan stok. Silakan hubungi tim kami untuk memperoleh informasi stok terbaru dan rekomendasi tipe yang sesuai.

Aplikasi Umum Pulsafeeder GLM Series

GLM Series banyak digunakan pada berbagai sistem pengolahan air maupun proses industri yang membutuhkan chemical dosing secara presisi.

Beberapa aplikasi yang paling umum meliputi:

• Water Treatment Plant (WTP)
• Wastewater Treatment Plant (WWTP)
• Reverse Osmosis (RO)
• Sea Water Reverse Osmosis (SWRO)
• Brackish Water Reverse Osmosis (BWRO)
• Boiler Feed Water System
• Cooling Tower
• Chemical Dosing System
• Palm Oil Industry
• Food & Beverage Industry
• Pharmaceutical Industry
• Chemical Industry
• Mining Industry
• Marine & Water Maker

Pada sistem Reverse Osmosis, GLM Series banyak digunakan untuk injeksi antiscalant maupun sodium bisulfite sehingga membantu menjaga performa RO Membrane serta memperpanjang umur pakai membran.

Untuk informasi lengkap dan permintaan penawaran harga GLM Series Pulsafeeder Dosing Pump silahkan hubungi kantor kami.

Dapatkan segera informasi status stock Dosing Pump dan terutama GLM Series.
